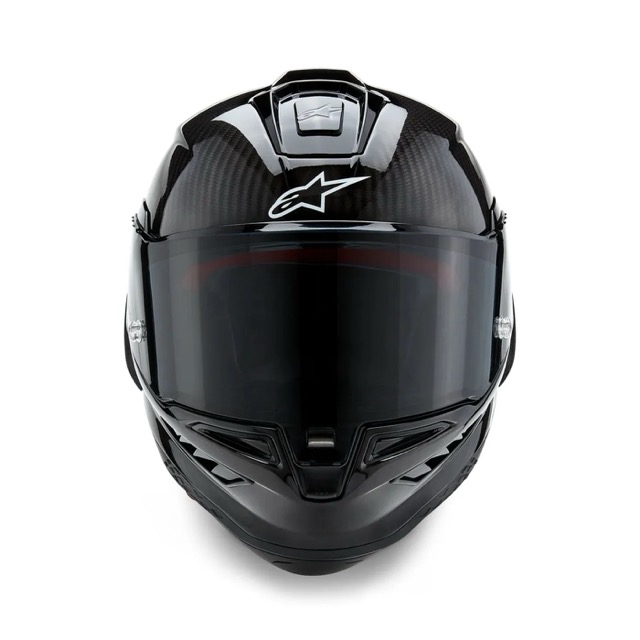

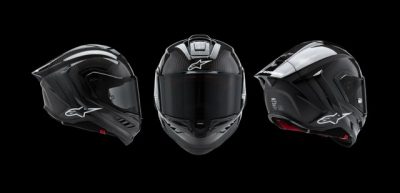

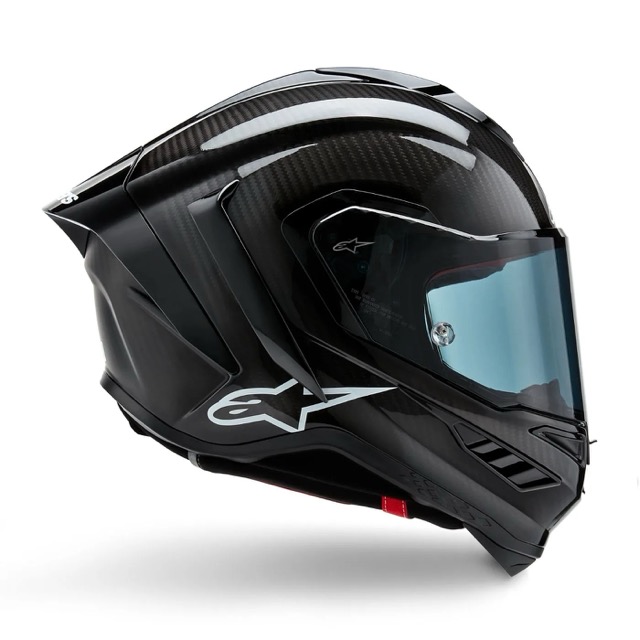

Alpinestars Supertech R10 Helmet

Alpinestars Supertech R10 Helmet

The culmination of over a decade of research, development, and track testing, the Alpinestars Supertech R10 sets a new benchmark in racing helmet performance. Developed alongside MotoGP legends like Andrea Dovizioso, Jorge Martin, and Jack Miller, the S-R10 has been engineered with one core objective: to deliver the highest levels of protection, performance, comfort, and aerodynamics for riders at the very limit.

Certified to ECE 22.06, DOT, and FIM standards, the S-R10 combines a highly advanced multi-layer carbon composite shell with state-of-the-art impact energy management, cutting-edge aerodynamics, and a race-proven ventilation system. Whether you’re carving up corners at the track or chasing apexes on the open road, the Supertech R10 delivers uncompromising safety and race-grade performance in every detail.

Key Features

Shell Construction & Safety

• Carbon Composite Outer Shell: Multi-layer construction using 3K high-density carbon, UD carbon composite, aramid fiber, and fiberglass for superior impact dissipation and penetration resistance.

• Pre-preg Epoxy Resin Bonding: Optimizes the resin-to-fiber ratio for strength and reduced weight.

• Advanced Impact Protection: Outperforms ECE 22.06 standards by 37% in linear impact and 65% in rotational/oblique impact performance.

• Chin Bar Safety Design: Sculpted profile with EPP liner and rubber compound to reduce collarbone injury risk.

Inner Shell & Fit

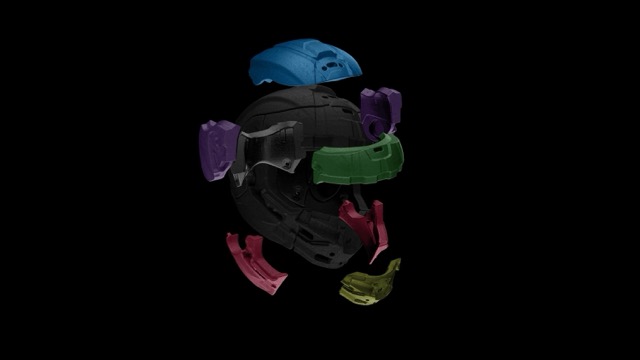

• Multi-Density EPS Liner: 8-piece, 6-density EPS tailored for each size for optimal energy absorption.

• Rotational Force Management: Low-friction, polished EPS surface reduces energy transfer during oblique impacts.

• A-Head Fitment System (Patented): Fully adjustable fit system for helmet height and tilt personalization.

Aerodynamics

• Wind Tunnel-Tested Shape: Developed using CFD and validated in a full-scale wind tunnel for low drag and maximum stability.

• Aerodynamic Spoilers: Comes with a Road spoiler; Race spoiler optional. Both use a patented breakaway mount to reduce rotational force in a crash.

• Turbulators & Winglets: Reduce drag and wind noise while improving stability.

• 4.54% Drag Reduction: Achieved with race spoiler and aero winglets setup.

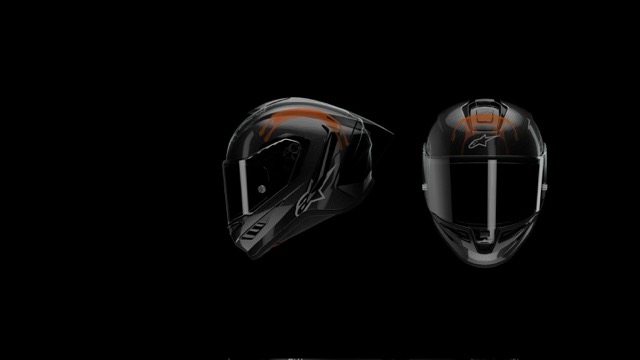

Ventilation System

• 11 Vent Ports: 7 intakes and 4 exhausts channel airflow through the EPS liner.

• Top Vent with Central Slider: Actively cools the crown and forehead.

• Fog-Free Performance: Chin vents direct air across the shield interior, reducing misting.

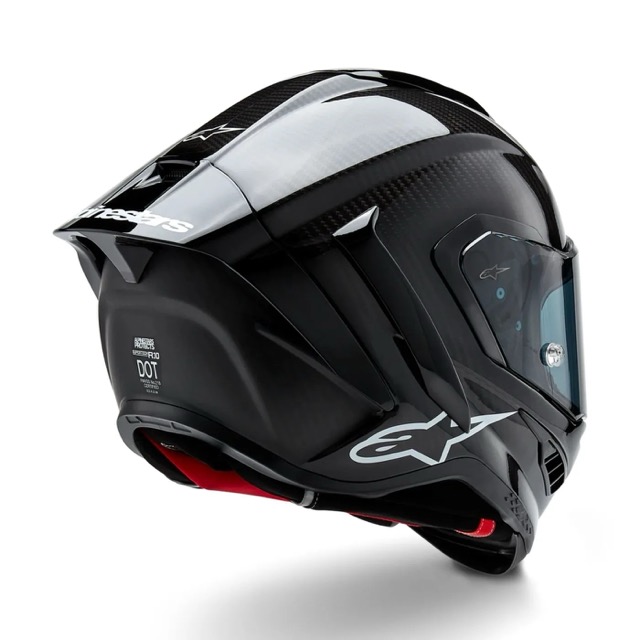

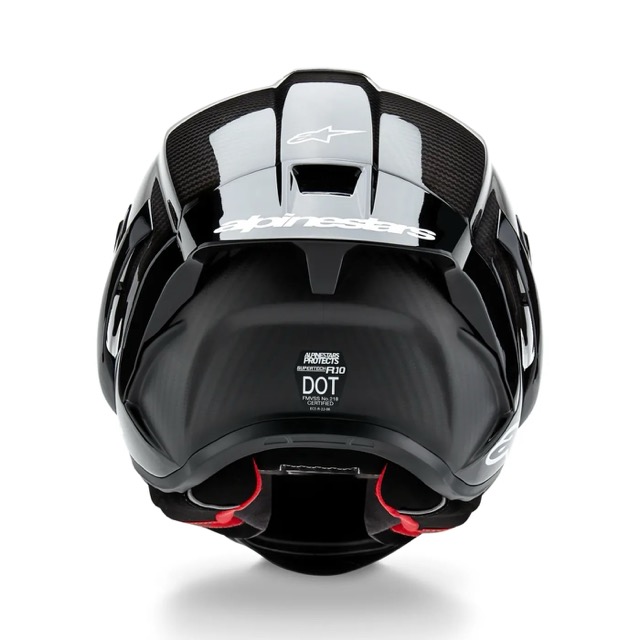

• Rear Extractors: Located under the spoiler to expel hot air.

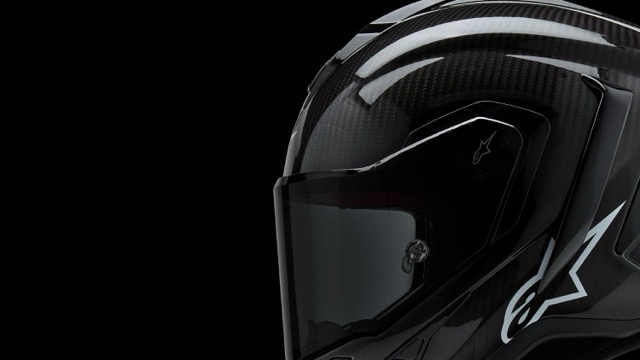

Optical Shield System

• Class 1 Optical Visor: 3mm thick, anti-scratch, anti-fog treated.

• Max Vision & Tear-Off Ready: Internal pins for PINLOCK 120XLT lens; external pins for tear-offs.

• Wide Field of View: 220° lateral, 57° vertical vision.

• Tool-Free Quick Release: Easy visor changes with secure metal locking mechanism.

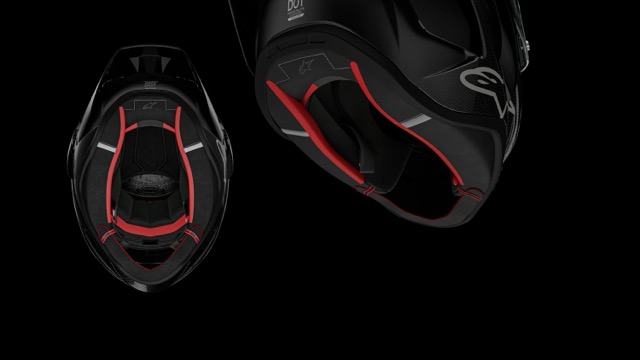

Comfort & Liner System

• Removable, Washable Interior: Anti-microbial liner system built for performance and hygiene.

• Crown & Neck Pads: Designed for improved rotational energy management and comfort.

• Emergency Cheek Pad Release: For safe helmet removal by medical personnel.

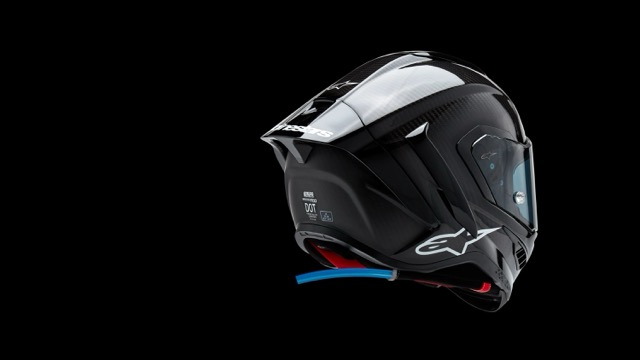

• Hydration-Ready: Cheek pads feature channels for hydration systems.

Weight

• Ultra-Lightweight Design: Only 1,540 grams (3.4 lbs) in size M – balancing protection with all-day comfort.

Included Accessories

• 2 Shields: Clear and dark smoke visors included.

• Pinlock Ready: Accepts PINLOCK 120XLT for optimal fog protection.

The Alpinestars Supertech R10 isn’t just a helmet—it’s a statement of cutting-edge technology, race-grade safety, and rider-focused performance. Trusted by top-tier MotoGP athletes, it’s built to perform when everything’s on the line.
